SMART-X
Cabinets, Server racks, Patching Frames
Our CANNON SMART-X range is a cutting-edge solution designed for scalability, energy efficiency and high performance
With advanced security features, SMART-X provides a future-proof infrastructure to meet the evolving demands of your business.
Ideal for industries with high data demands, including telecommunications, electronic packaging, finance, defence and IT.
SMART-X can be used as a standalone unit or as part of a larger datacentre installation, with a range of sizes and accessories, SMART-X is a great scalable solution.

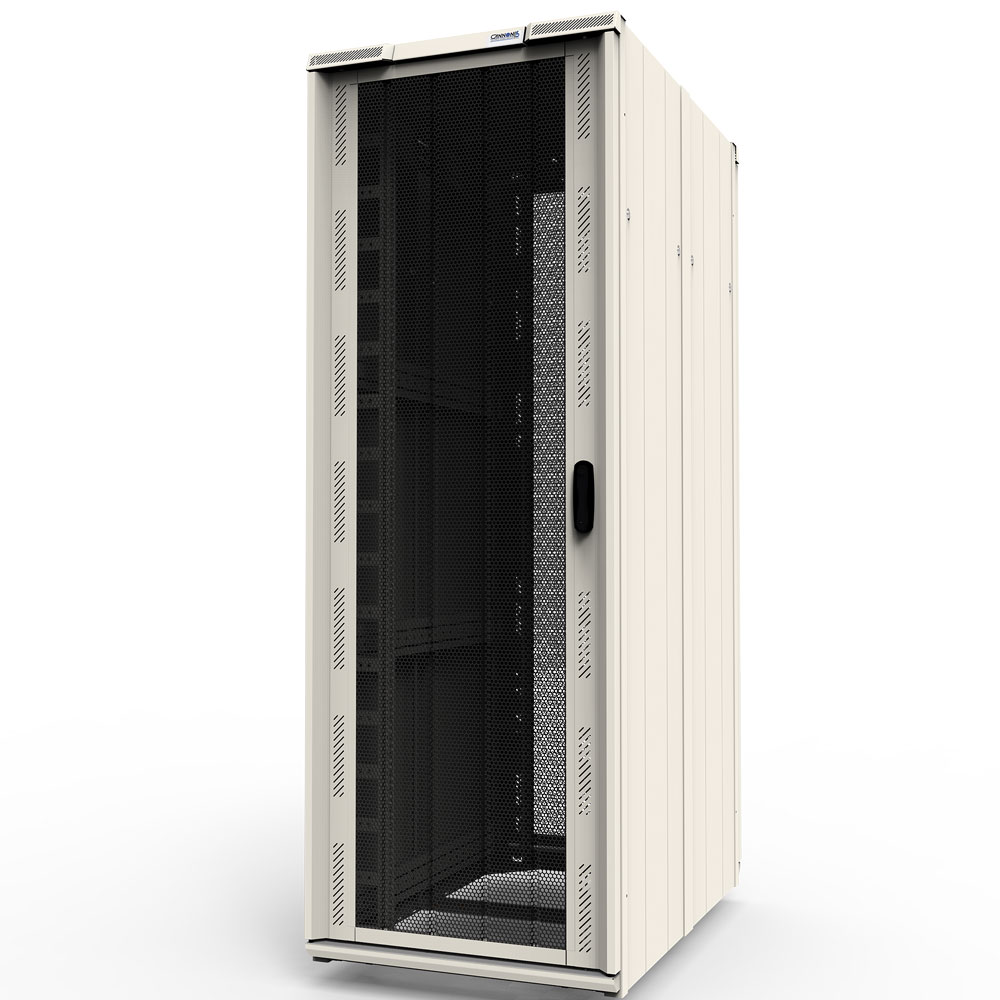

- 19” Server Cabinet
- Multiple Range of Sizes
- Rapid Availability
- Accessories available
- Secure, Safe Protection
- ‘IT’ and Datacentre Ready
- Flexible Innovative Design
SMART-X
KEY FEATURES

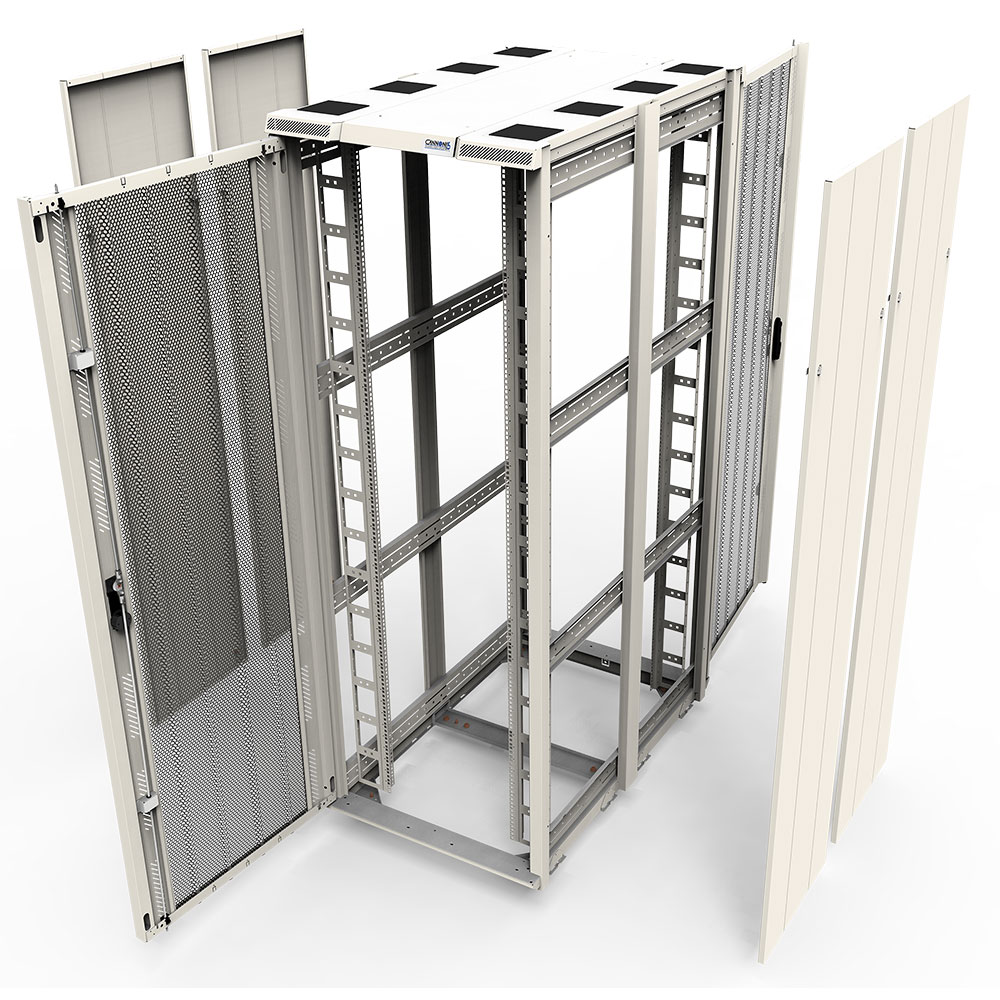

- Modern & Modular Design
Flexible, scalable units that grow with your data needs - Easy Access
Exceptional base access and unique 180° (bayed) / 270° opening doors - Rapid Install
Mounting posts with vendor-agnostic profiles for universal 19” equipment fitting
Removable, multi-entry roof panel for flood wiring for rapid installation - Safe, Secure Protection
Steel construction, built for large static loads
2 point locking front and rear - Rapid Deployment
Pre-built and factory-fitted solutions reducing installation time - Accessories Included
U height markings
Earth kit for panel and door earth bonding - Reduced Plastics
Increased recyclability due to reduced plastic usage in the design
TECHNICAL INFORMATION
- Accommodates all 19-inch rack-mountable servers with mixed server-depth solutions
- Heights: 25U to 52U
- Widths: 600mm, 800mm
- Depths: 1000mm & 1200mm
- Perforated 78% open area front door and rear perforated frame door with 2-point locking
- Four adjustable 19” panel/slide mounts
- Large cable access entry point(s) top and base
- Four adjustable 19-inch mounting posts for universal equipment
- Four transit castors fitted or supplied loose
Order Codes
Cabinet| Height | Width | Depth | Part No. | Description |
| 25 | 600 | 1000 | SMART-X-256099 | 25U 600 WIDE X 1000 DEEP SMART X 19” SERVER CAB |
| 25 | 600 | 1200 | SMART-X-256012 | 25U 600 WIDE X 1200 DEEP SMART X 19” SERVER CAB |
| 25 | 800 | 1000 | SMART-X-258099 | 25U 800 WIDE X 1000 DEEP SMART X 19” SERVER CAB |
| 25 | 800 | 1200 | SMART-X-258012 | 25U 800 WIDE X 1200 DEEP SMART X 19” SERVER CAB |
| 42 | 600 | 1000 | SMART-X-426099 | 42U 600 WIDE X 1000 DEEP SMART X 19” SERVER CAB |
| 42 | 600 | 1200 | SMART-X-426012 | 42U 600 WIDE X 1200 DEEP SMART X 19” SERVER CAB |
| 42 | 800 | 1000 | SMART-X-428099 | 42U 800 WIDE X 1000 DEEP SMART X 19” SERVER CAB |
| 42 | 800 | 1200 | SMART-X-428012 | 42U 800 WIDE X 1200 DEEP SMART X 19” SERVER CAB |
| 48 | 600 | 1000 | SMART-X-486099 | 48U 600 WIDE X 1000 DEEP SMART X 19” SERVER CAB |
| 48 | 600 | 1200 | SMART-X-486012 | 48U 600 WIDE X 1200 DEEP SMART X 19” SERVER CAB |
| 48 | 800 | 1000 | SMART-X-488099 | 48U 800 WIDE X 1000 DEEP SMART X 19” SERVER CAB |
| 48 | 800 | 1200 | SMART-X-488012 | 48U 800 WIDE X 1200 DEEP SMART X 19” SERVER CAB |
| 52 | 600 | 1000 | SMART-X-526099 | 52U 600 WIDE X 1000 DEEP SMART X 19” SERVER CAB |
| 52 | 600 | 1200 | SMART-X-526012 | 52U 600 WIDE X 1200 DEEP SMART X 19” SERVER CAB |
| 52 | 800 | 1000 | SMART-X-528099 | 52U 800 WIDE X 1000 DEEP SMART X 19” SERVER CAB |
| 52 | 800 | 1200 | SMART-X-528012 | 52U 800 WIDE X 1200 DEEP SMART X 19” SERVER CAB |
Download Literature
SMART-X Brochure
