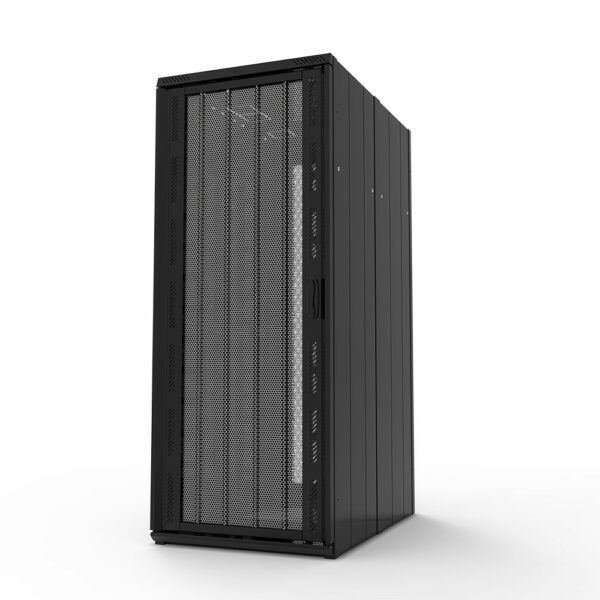

Epic-X Front

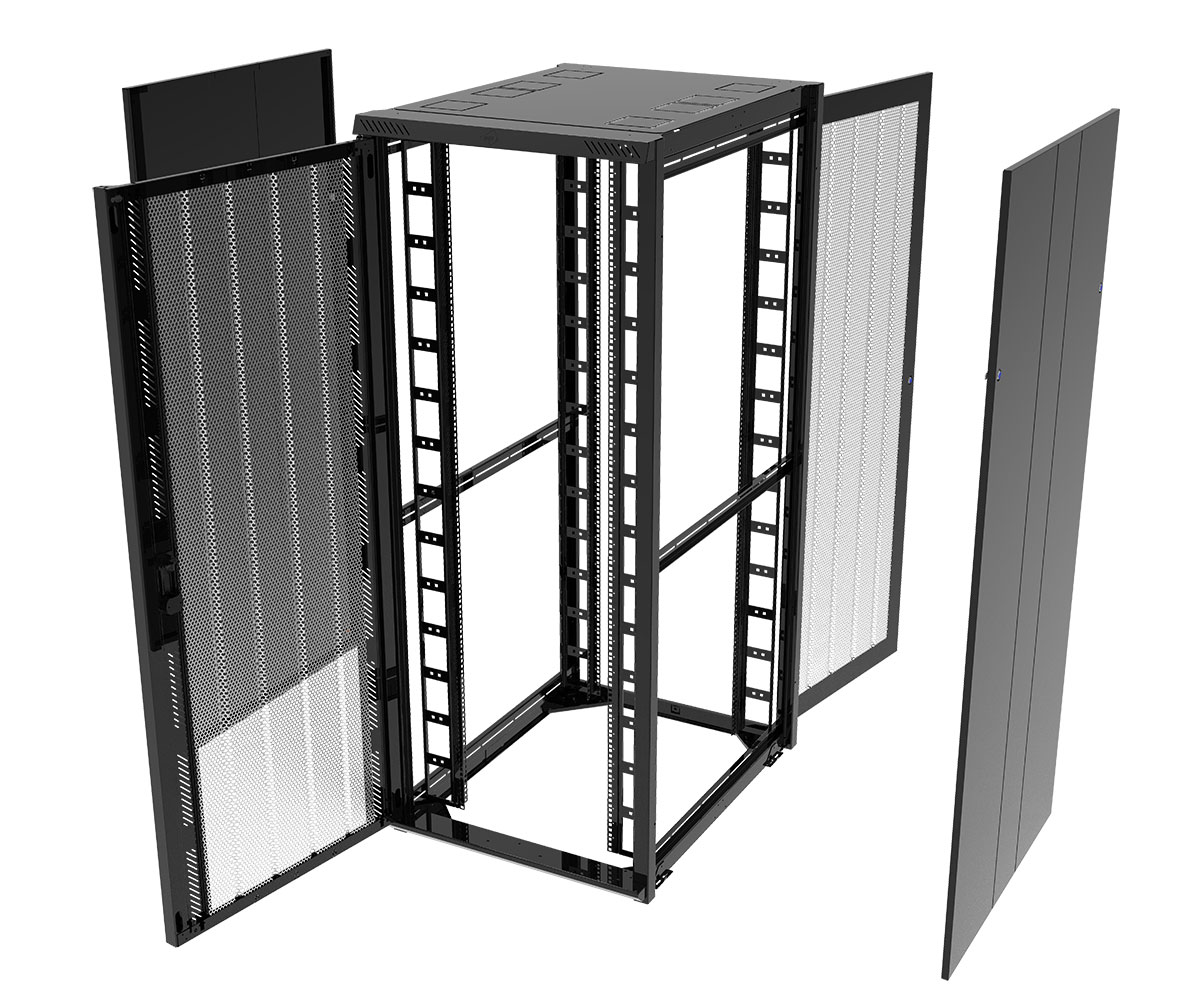

Epic-X Exploded View

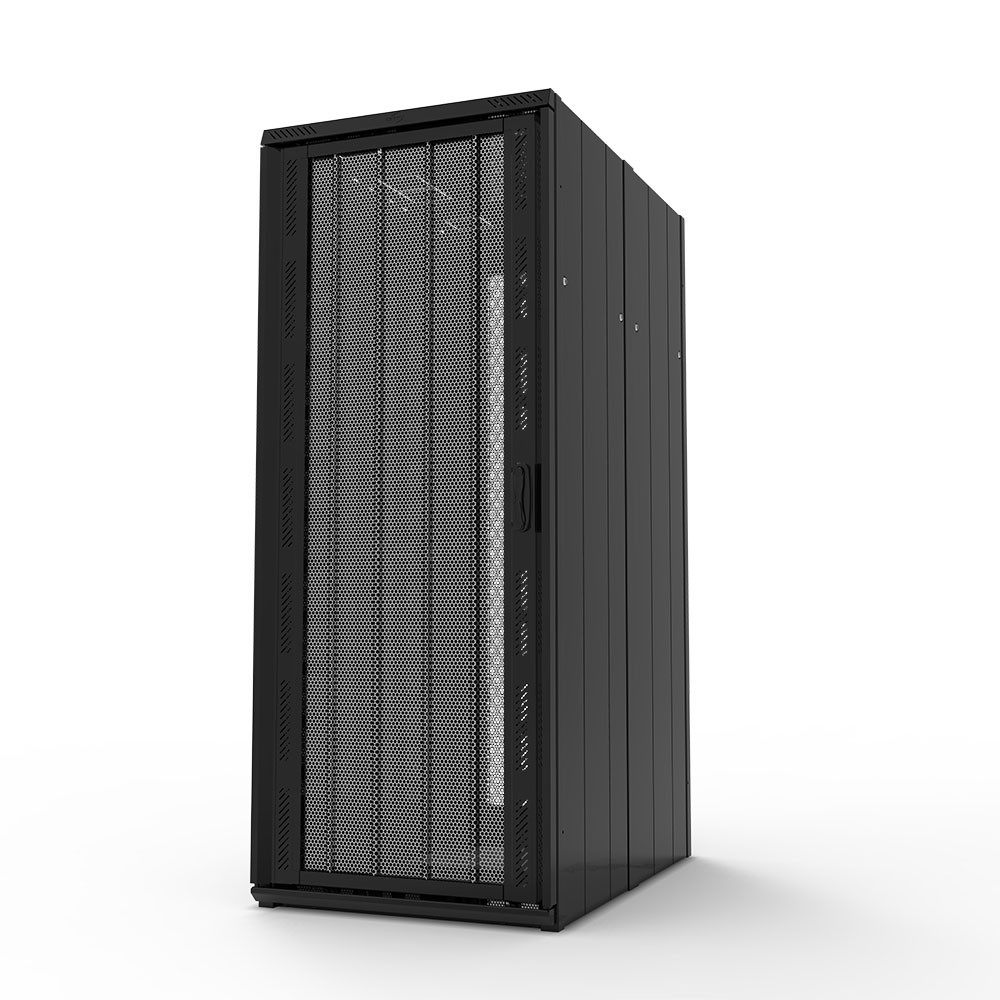

Epic-X Front
Epic-X Exploded View

EPIC-X

Our EPIC-X range is a cutting-edge solution designed for scalability, energy efficiency and high performance

With advanced security features, EPIC-X provides a future-proof infrastructure to meet the evolving demands of your business.

Ideal for industries with high data demands, including telecommunications, electronic packaging, finance, defence and IT.

  • 19” Server Cabinet
  • Multiple Range of Sizes
  • Rapid Availability
  • Accessories available
  • Secure, Safe Protection
  • ‘IT’ Ready
  • Flexible Innovative Design

EPIC-X

KEY FEATURES

  • Modern & Modular Design
    Flexible, scalable units that grow with your data needs
  • Easy Access
    Exceptional base access and unique 180° (bayed) / 270° opening doors
  • Rapid Install
    International mounting posts and removable, multi-entry roof panel for flood wiring for rapid installation
  • Safe, Secure Protection
    Steel construction, built for large static loads
  • Rapid Deployment
    Pre-built and factory-fitted solutions reducing installation time

TECHNICAL INFORMATION

  • Accommodates all 19-inch rackmountable
    servers with mixed serverdepth
    solutions
  • Heights: 25U to 47U
  • Widths: 600mm, 800mm
  • Depths: 600mm, 800mm, 1000mm & 1200mm
  • Perforated 78% open area front door and rear perforated frame door
  • Four adjustable 19” panel/slide mounts
  • Large cable access entry point(s) top and base
  • Four infinitely adjustable 19-inch mounting posts for universal equipment
  • Four transit castors fitted or supplied loose

Order Codes

Cabinet
Height Width Depth Part No. Description
mm mm Order Code
25 600 600 EPIC-X256060 25U 600 WIDE X 600 DEEP EPIC X 19” SERVER CAB
25 600 800 EPIC-X256080 25U 600 WIDE X 800 DEEP EPIC X 19” SERVER CAB
25 600 1000 EPIC-X256099 25U 600 WIDE X 1000 DEEP EPIC X 19” SERVER CAB
25 800 600 EPIC-X258060 25U 800 WIDE X 600 DEEP EPIC X 19” SERVER CAB
25 800 800 EPIC-X258080 25U 800 WIDE X 800 DEEP EPIC X 19” SERVER CAB
25 800 1000 EPIC-X258099 25U 800 WIDE X 1000 DEEP EPIC X 19” SERVER CAB
33 600 600 EPIC-X336060 33U 600 WIDE X 600 DEEP EPIC X 19” SERVER CAB
33 600 800 EPIC-X336080 33U 600 WIDE X 800 DEEP EPIC X 19” SERVER CAB
33 600 1000 EPIC-X336099 33U 600 WIDE X 1000 DEEP EPIC X 19” SERVER CAB
33 800 600 EPIC-X338060 33U 800 WIDE X 600 DEEP EPIC X 19” SERVER CAB
33 800 800 EPIC-X338080 33U 800 WIDE X 800 DEEP EPIC X 19” SERVER CAB
33 800 1000 EPIC-X338099 33U 800 WIDE X 1000 DEEP EPIC X 19” SERVER CAB
38 600 600 EPIC-X386060 38U 600 WIDE X 600 DEEP EPIC X 19” SERVER CAB
38 600 800 EPIC-X386080 38U 600 WIDE X 800 DEEP EPIC X 19” SERVER CAB
38 600 1000 EPIC-X386099 38U 600 WIDE X 1000 DEEP EPIC X 19” SERVER CAB
38 600 1200 EPIC-X386012 38U 600 WIDE X 1200 DEEP EPIC X 19” SERVER CAB
38 800 600 EPIC-X388060 38U 800 WIDE X 600 DEEP EPIC X 19” SERVER CAB
38 800 800 EPIC-X388080 38U 800 WIDE X 800 DEEP EPIC X 19” SERVER CAB
38 800 1000 EPIC-X388099 38U 800 WIDE X 1000 DEEP EPIC X 19” SERVER CAB
38 800 1200 EPIC-X388012 38U 800 WIDE X 1200 DEEP EPIC X 19” SERVER CAB
42 600 600 EPIC-X426060 42U 600 WIDE X 600 DEEP EPIC X 19” SERVER CAB
42 600 800 EPIC-X426080 42U 600 WIDE X 800 DEEP EPIC X 19” SERVER CAB
42 600 1000 EPIC-X426099 42U 600 WIDE X 1000 DEEP EPIC X 19” SERVER CAB
42 600 1200 EPIC-X426012 42U 600 WIDE X 1200 DEEP EPIC X 19” SERVER CAB
42 800 600 EPIC-X428060 42U 800 WIDE X 600 DEEP EPIC X 19” SERVER CAB
42 800 800 EPIC-X428080 42U 800 WIDE X 800 DEEP EPIC X 19” SERVER CAB
42 800 1000 EPIC-X428099 42U 800 WIDE X 1000 DEEP EPIC X 19” SERVER CAB
42 800 1200 EPIC-X428012 42U 800 WIDE X 1200 DEEP EPIC X 19” SERVER CAB
45 600 1000 EPIC-X456099 45U 600 WIDE X 1000 DEEP EPIC X 19” SERVER CAB
45 600 1200 EPIC-X456012 45U 600 WIDE X 1200 DEEP EPIC X 19” SERVER CAB
45 800 1000 EPIC-X458099 45U 800 WIDE X 1000 DEEP EPIC X 19” SERVER CAB
45 800 1200 EPIC-X458012 45U 800 WIDE X 1200 DEEP EPIC X 19” SERVER CAB
47 600 1000 EPIC-X476099 47U 600 WIDE X 1000 DEEP EPIC X 19” SERVER CAB
47 600 1200 EPIC-X476012 47U 600 WIDE X 1200 DEEP EPIC X 19” SERVER CAB
47 800 1000 EPIC-X478099 47U 800 WIDE X 1000 DEEP EPIC X 19” SERVER CAB
47 800 1200 EPIC-X478012 47U 800 WIDE X 1200 DEEP EPIC X 19” SERVER CAB
